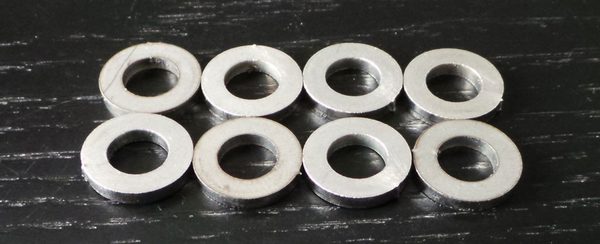

Hiduron Washers

The Hiduron family chemistry is a small Cu-Ni-Al window with manganese as the principal differentiator between Hiduron 130 and Hiduron 191. The Cu balance plus the controlled Ni, Al and Fe land the gamma-prime Ni3Al precipitation response on solution-anneal plus age. Hiduron 191 carries the higher manganese addition for solid-solution strengthening on top of the gamma-prime precipitation, which lifts the room-temperature yield and tensile envelope above the Hiduron 130 baseline.

Both grades develop their strength on the solution-anneal plus age cycle through gamma-prime Ni3Al precipitation. Room-temperature tensile, proof stress, elongation and hardness are listed for the standard age envelope. Elevated-temperature mechanicals stay stable to 200 deg C and degrade above 300 deg C, which is well above the marine and subsea service envelope where the family is specified.

The Hiduron family carries four flagship Cu-Ni-Al properties that decide its selection over competing alloys on subsea, marine and naval bolting projects. These four properties together remove maintenance and inspection burden that limits the service life of stainless and precipitation-hardened nickel alloys in the same environment.

• Anti-galling. The Cu-rich matrix and the gamma-prime aged surface tolerate repeated bolt-up and break-out cycles without thread pickup. Riser flange bolting on offshore platforms is re-tensioned periodically as part of the inspection routine, and Hiduron 191 studs survive the cyclic bolt-up without thread damage. This is the decisive selector over precipitation-hardened stainless options where galling at the bolt-up face is a routine failure mode.
• Anti-biofouling. The Cu surface chemistry releases trace Cu ions in seawater that suppress the bacterial film required for marine biofouling colonisation. Hiduron projecting threads in the splash zone stay clean over service life, removing the periodic mechanical descaling that limits the service life of stainless bolting in the same band.
• Non-magnetic. Both grades hold magnetic permeability below 1.005 mu_r, which is why naval surface and submarine programmes specify Hiduron over competing high-strength bolting alloys in compartments where magnetic signature interferes with sensor or weapon-system operation.
• Hydrogen-embrittlement immune. The Cu-Ni-Al family is immune to hydrogen-induced cracking under cathodic protection, which is the principal failure mode for high-strength steel and precipitation-hardened nickel bolting in deep-water subsea cathodic-protection environments. This is the decisive selector for Hiduron 130 over Monel K-500 on subsea connector bodies polarised under sacrificial-anode CP.

The standard cycle is solution-anneal at 900 to 950 deg C, hold for one hour per 25 mm of section thickness, then water quench to freeze the gamma-prime formers in solid solution. The age is 475 to 525 deg C for 3 to 6 hours followed by air cool, which precipitates the gamma-prime Ni3Al strengthening phase. The age temperature controls the strength versus ductility balance; ageing below 475 deg C leaves the precipitate under-developed and the room-temperature yield falls below the specification floor, while ageing above 525 deg C over-coarsens the precipitate and the strength drops. For fasteners and components machined from solution-annealed bar, the age is performed post-machining to relieve residual stress in the same cycle and lock in the dimensional condition.

Hiduron 130 and Hiduron 191 are welded with matched-composition filler under inert-gas shielding (typically gas tungsten arc with argon shield) at preheat 100 to 200 deg C and inter-pass temperature controlled below 250 deg C to protect the heat-affected zone toughness. For typical bolting and machined-component section thickness up to about 50 mm, no post-weld heat treatment is required because the alloy does not develop hard untempered HAZ structures in the same way alloy-steel bolting does. For sections above 50 mm or for naval and subsea components where the project specification calls for a parent-property restoration through the weld, a post-weld solution-anneal followed by full age is the standard route. Hardness traverse across weld plus HAZ plus parent verifies the age achieved the intended precipitation; for Hiduron 191 sour-service applications, hardness must not exceed 286 HBW (28 HRC) at any point to maintain NACE MR0175 compliance.

The bolting and machined-component shortlist for subsea, marine and naval Cu-Ni-Al service usually narrows to Hiduron 130 or Hiduron 191 against three neighbouring grades. The decisive selectors are NACE MR0175 sour-service compliance, hydrogen-embrittlement immunity, non-magnetic response and the room-temperature strength envelope. The table below positions each grade against the typical service drivers.

The Hiduron family is specified across subsea, offshore platform, naval, marine commercial and oil-and-gas sour-service projects. The 8 primary service areas are linked below, each anchored on the decisive selection driver for that segment.

Q. Why is a hardened washer mandatory on a heavy hex bolt assembly?
An un-hardened washer yields under the bolt-up preload and the bolt loses preload as the washer thickness reduces under stress. A hardened Hiduron washer to DIN 6916 / ASME F436 carries the full bolt-up preload without face yielding, which is why every heavy hex bolting design from M16 up specifies a hardened washer at each bearing face.

Q. Are spring lock washers necessary on a Hiduron joint?
Cu-Ni-Al fasteners hold preload well thanks to the anti-galling thread surface and the gamma-prime aged strength. A flat hardened washer is sufficient on most joints. Spring lock washers (DIN 127) are supplied for vibration-sensitive bolting where rotation under cyclic load is a real risk, such as naval main-engine bolting.

Q. Can a Hiduron washer be supplied to a customer non-standard size?
Yes. Custom inside-diameter, outside-diameter and thickness washers are blanked from Hiduron bar slice or forged plate to project drawing. The standard EN 10204 type 3.1 mill test certificate covers the custom-blank washer dimensions.

Q. What is the corrosion behaviour at the washer-flange interface?
A Hiduron washer on a Hiduron-bolt-to-Hiduron-flange joint creates a single-chemistry interface with no galvanic cell. On a Hiduron bolt clamping a steel or stainless flange the Hiduron washer still helps by spreading the preload, but a chemistry transition is unavoidable at the flange face and any sour-service overlap must be reviewed against NACE MR0175.

Q. Do the washers need NACE certification?
Yes when paired with Hiduron 191 sour-service studs or bolts. Each Hiduron 191 washer lot is hardness-tested against the 286 HBW (28 HRC) NACE MR0175 limit and the result is recorded on the mill test certificate alongside the matched-stud certification.

TorqBolt supplies Hiduron 130 and Hiduron 191 to subsea EPCs, offshore platform operators, naval shipyards and oil-and-gas integrators worldwide. For project-specific size, length, certification scope and lead time, contact the sales desk at torqbolt.com/contact-us or email info@torqbolt.com with the project drawing or specification reference.
